Camera Monitor

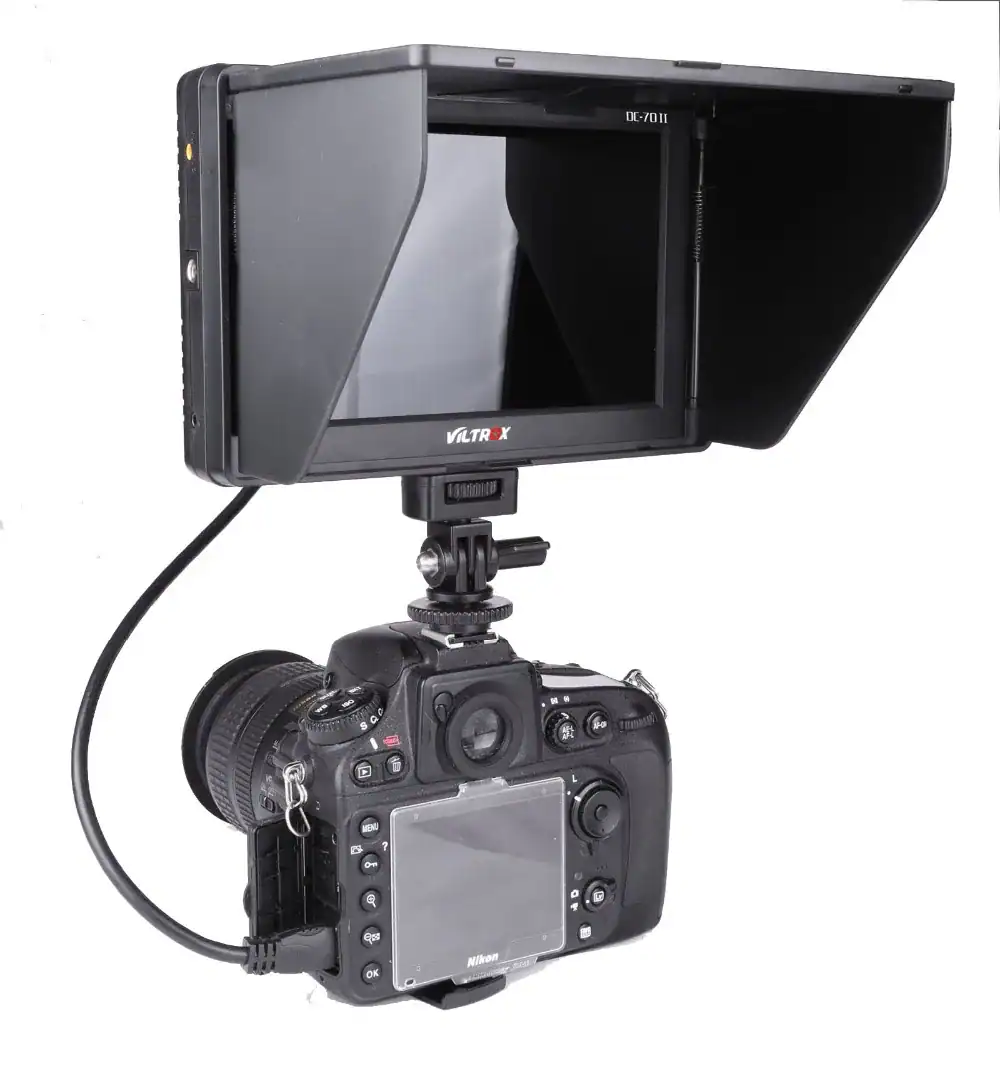

This product is a portable LCD Camera Monitor for use with an Interchangeable Lens Digital Camera or an Interchangeable Lens Digital HD Video Camera Recorder with an HDMI terminal and live view mode. It can display HDMI video output from the camera. The following functions help you to see the image more clearly and take better pictures.
Wide viewing angle LCD screen
Useful functions such as peaking and pixel-by-pixel zoom
Controls camera shutter release ensures the long-distance monitor.
Moveable shoe adaptor enables easy removal when using a camera that has an auto-lock accessory shoe.
Works with a rechargeable battery or power adapter.
Wide viewing angle LCD screen
Useful functions such as peaking and pixel-by-pixel zoom
Controls camera shutter release ensures the long-distance monitor.
Moveable shoe adaptor enables easy removal when using a camera that has an auto-lock accessory shoe.
Works with a rechargeable battery or power adapter.

Feature:
DC-70II a portable LCD monitor for use with an Interchangeable Lens Digital Camera or an Interchangeable Lens Digital HD Video Camera Recorder with an HDMI terminal and live view mode. It can display HDMI video output from the camera. The following functions help you to see the image more clearly and take better pictures.
- Supporting 4K HDMI Input/ Output.
- Wide viewing angle LCD screen
- Useful functions such as peaking and pixel-by-pixel zoom
- Controls camera shutter release ensures the long-distance monitor.
- Moveable shoe adaptor enables easy removal when using a camera that has an auto-lock accessory shoe.
- Works with a rechargeable battery or power adapter.
Specifications:
Dimensions(W×H×D): Approx. 191×128×36 mm
Weight: Approx. 480g (Excluding battery)
Color: Black
Operating temperature: +0 to +40°C (+32 to +104°F)
Storage temperature: -20 to +60°C (-4 to +140°F)
Power Supply: DC 8V~18V
Suitable battery:F970/F960/F950/F770/F570/F550/F330/FM50/FM500H/QM71D/QM91D
–Panel
-LCD Display Screen: 7 inches
-Resolution: 1024 x 600 Pixel
-Audio: Support loudspeaker, headphone port 3.5

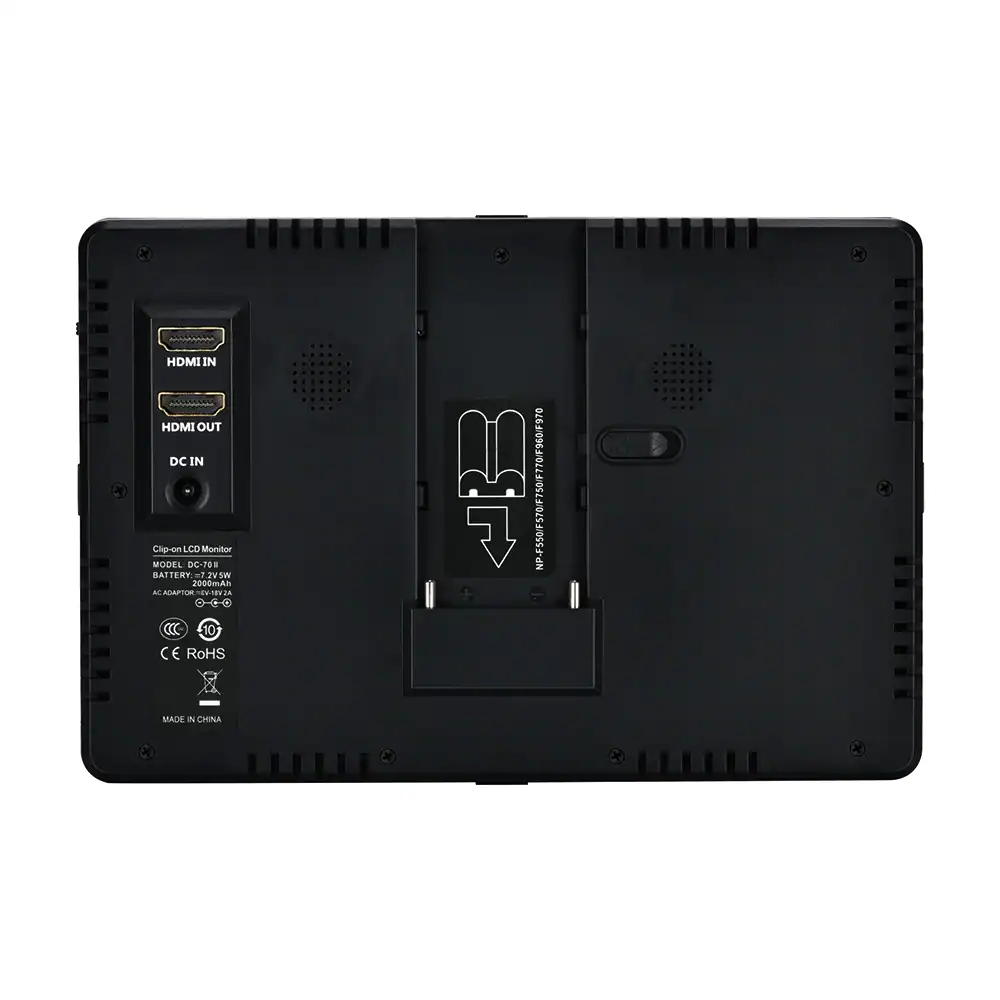

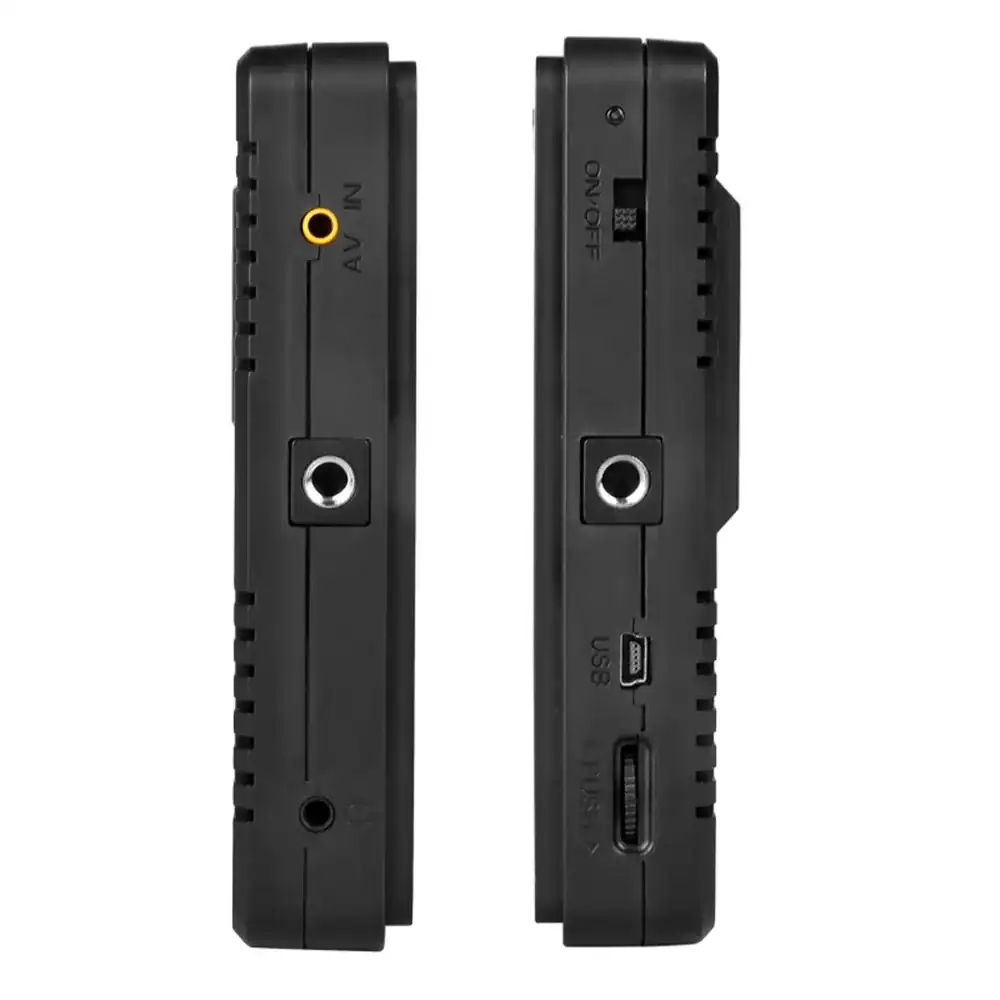

-Input jack:

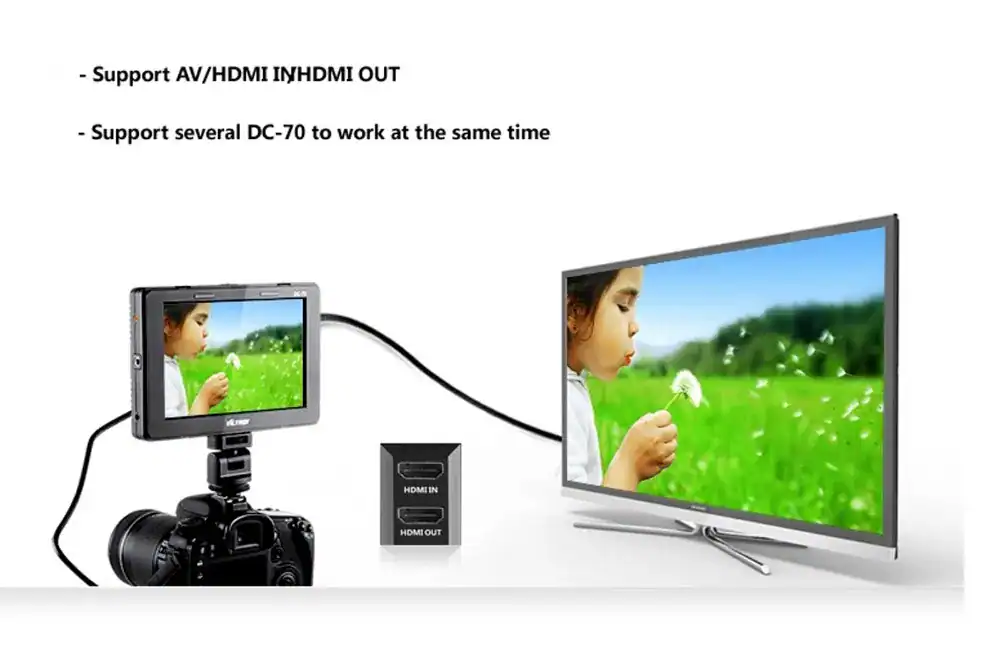

- HDMI input ×1
- AV input ×1
- DC IN input (power adapter plug)
- USB upgrade jack (Software upgrade)
-Output jack:
- HDMI Signal output x1
- Headphones output jack x1

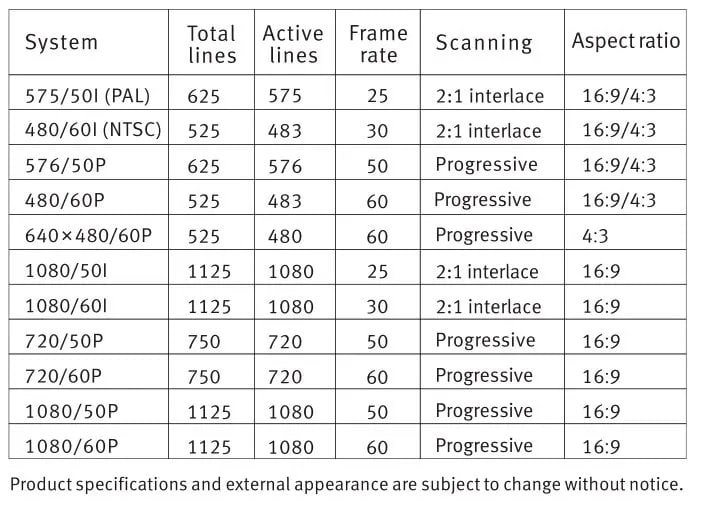

Available signal formats
The unit is applicable to the following signal formats:

Package list:
LCD Monitor x 1

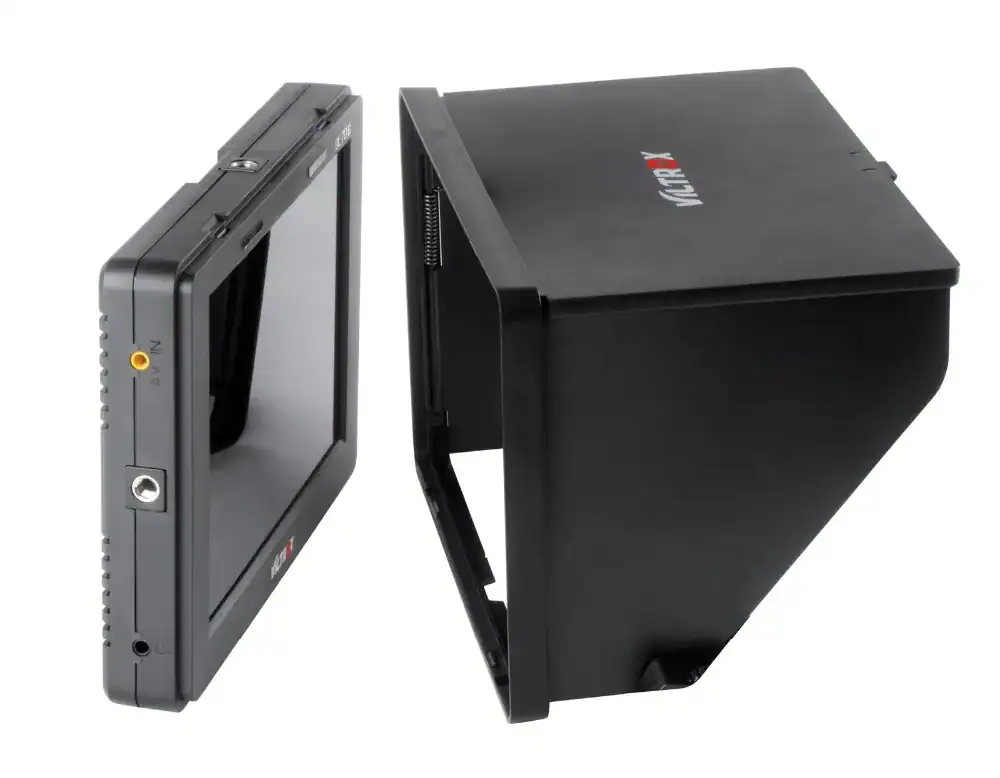

Sunshade hood × 1
Standard shoe × 1
HDMI Cable Type A-Type C × 1
Protective Bag x 1
Original Packing x 1
