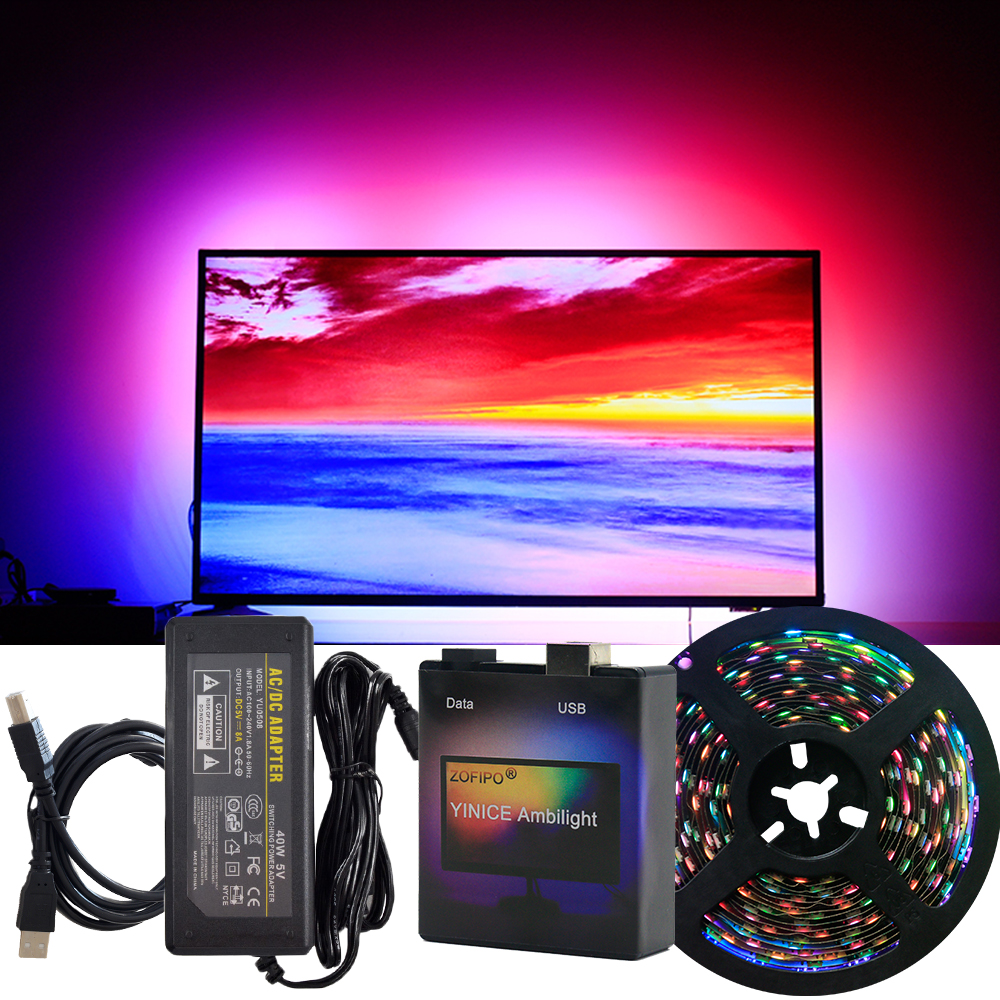

Ambilight USB LED Strip
Ambilight adds ambient backlight effects to Computer or laptop compliment on-screen video content.
An Ambilight kit dynamically adjusts elements such as color and brightness to create a more immersive multimedia experience.
This kit working with computer ONLY !
What software is needed?
Windows: Ambibox or Prismatik
Mac Os/Linux: Prismatik
If you want to use this kit for TV,please try these method:
1, the video signal of the computer is output to TV, TV as monitor.
2, install or run Openelec/libreelec+Hyperion on your TV/TV box.
Setting up the Ambibox Capture Software.

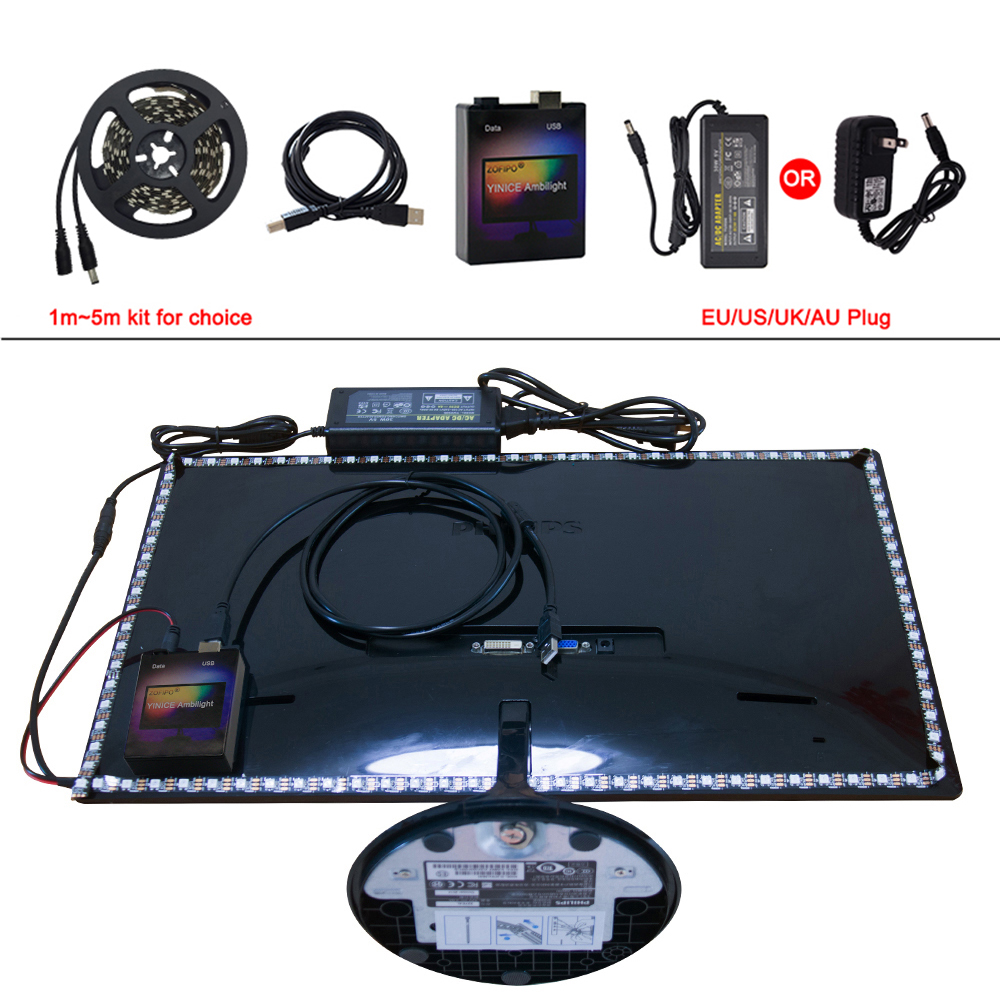

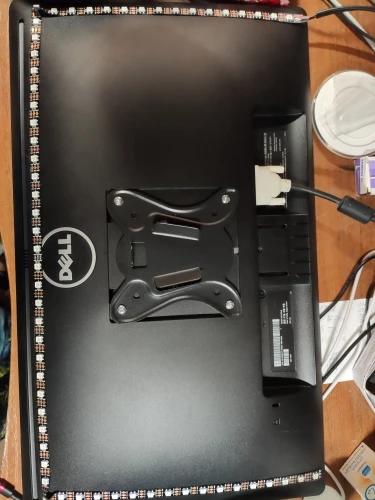

Step 1: Install LED light on your PC. (please refer to the video for details,//youtu.be/gNxlWIsgwvI )
Step 2: Setting up the Ambibox Capture Software.

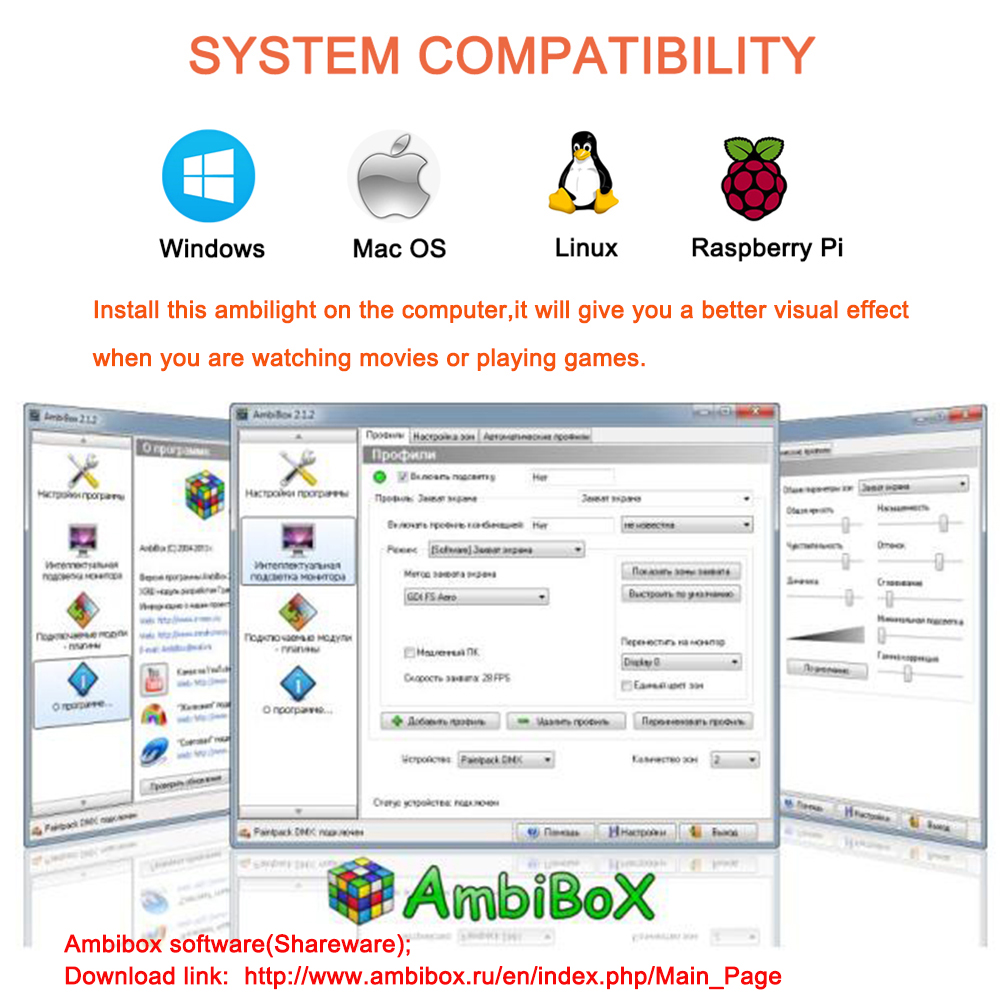

2.1. Ambibox software(Shareware);Download link: //www.ambibox.ru/en/index.php/Main_Page
2.2. Run the Ambibox software, when installing, it recommends to use PlayClaw, I wouldn’t recommend to using it.
2.3. Select device and set this as “Adalight”, under menu of “Intelligent backlight display”, select the Port and the COM Port that your device has been detected.if you’re unsure have a look in device manager. If select correctly, you can see Device Status: Connected, also down the bottom left it will say Adalight: connected.
Note: The USB Port should be CH340(COM*),if not have ,please download the CH340 Driver.
2.4. In here you can also select you capture method I suggest GDI FS Aero or PlayClaw. Now under number of zones select the number of IC’s you have, and it will be one IC for every LED.
Once you setted up, you can select the “Wizard capture zones” which will automatically generate all capture zones for you.
In here you can also select you capture method I suggest GDI FS Aero or PlayClaw. Now under number of zones select the number of IC’s you have, and it will be one IC for every LED.
Save your settings and now you should be able to give it a test!
THE led strip only works after installation and setting.
× If just connect to Power&USB,it does not work!
PRO TIPS: if you find your colours are washing out or seem very white rather than colourful, adjust your gamma settings, if you getting a white backlight on a pure black screen, increase the size of sample zones, It will take a bit of fine tuning but worth it!
