Product Details

Dowelling Jig Kit

Perfect Mortise and Tenon Marking Plus Pin-Point Doweling Accuracy!

Center Gauge and Dowelling Jig Kit easily and accurately find the center of a board’s edge every time; no measuring and no tedious trial and error adjustments required. This makes it the perfect tool for both mortise and tenon layout and drilling dead-on aligned dowel joint holes.

Center Gauge Dowelling Jig Kit. To switch to doweling moderemove the marking bar and attach the doweling jig bar. To use, simply align the precision-machined notches on the jig’s doweling bar with the dowel location mark on your board, hold the jig and drill. Slide the jig to the next location, align and drill. No need to clamp the jig or tighten knobs.

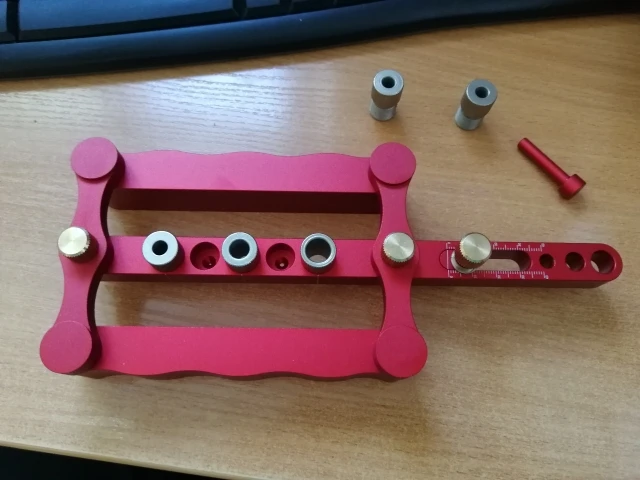

Features Not Found On Other Jigs. Attach the doweling jig’s adjustable end-stop for drilling two or three precisely spaced end-grain holes for alignment of face frame stiles and rails. The handy inch/millimeter scale let you accurately set the stop. What could be easier?

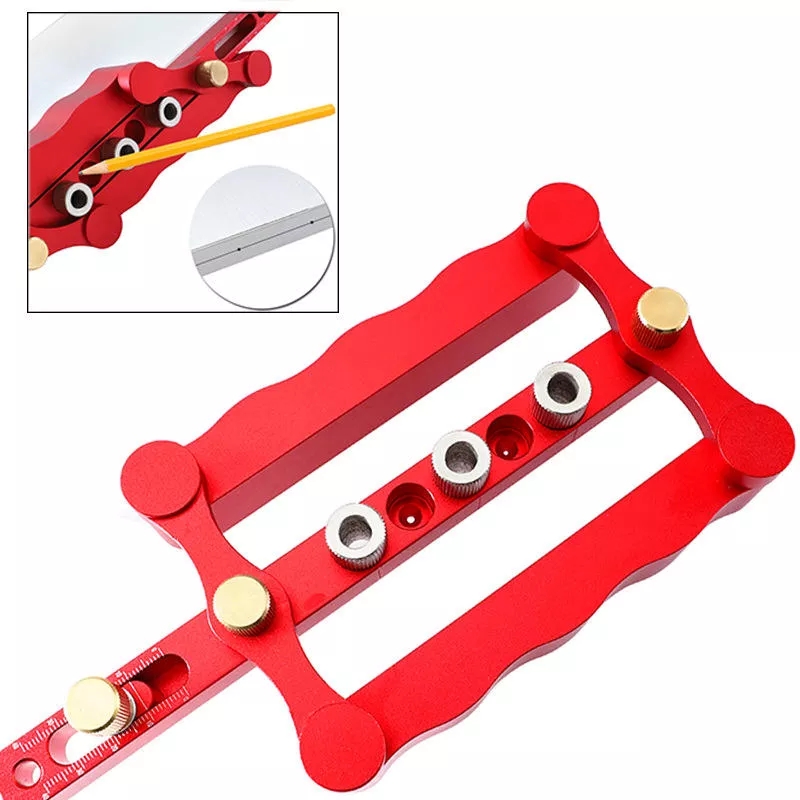

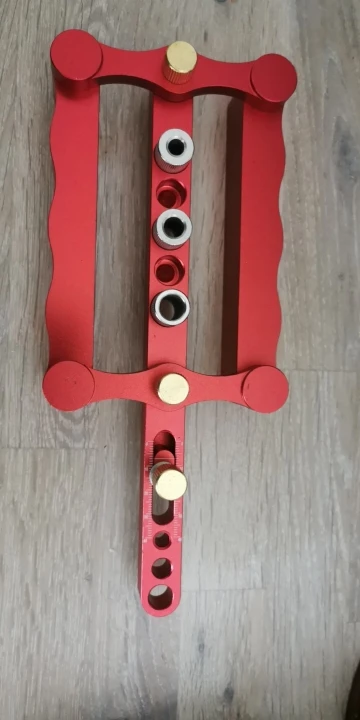

Based on the never-fail reliability of a parallelogram, the Center Gauge Dowelling Jig Kit features two, precision-machined parallel arms that quickly adjust to the stock thickness, placing the center bar dead center on the material. Just use a pencil, marking knife, or scribe tool to mark out the center bar location on your stock– and you’re done!


  • High-quality and Durable Material–The joinery punch locator is aluminum alloy 6061+steel HRC50(drill bushing)+brass (nut). High hardness, quality assurance, durable and long service life.

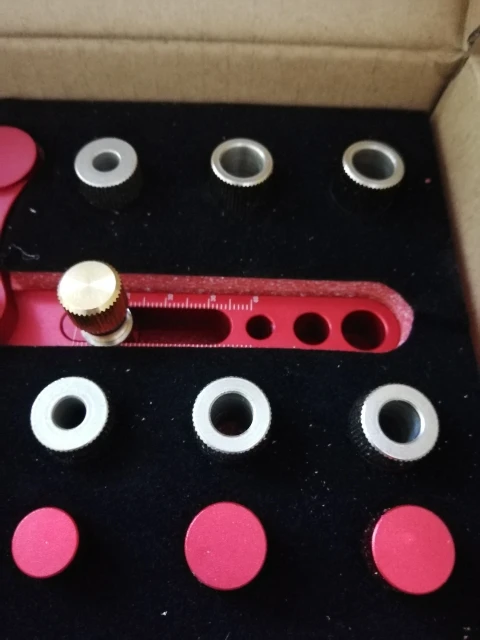

  • High Precision–The joinery punch locator provides improved version comes with 6mm, 8mm and 10mm bushings and 1mm and 2mm scoring hole for making different sizes of holes.

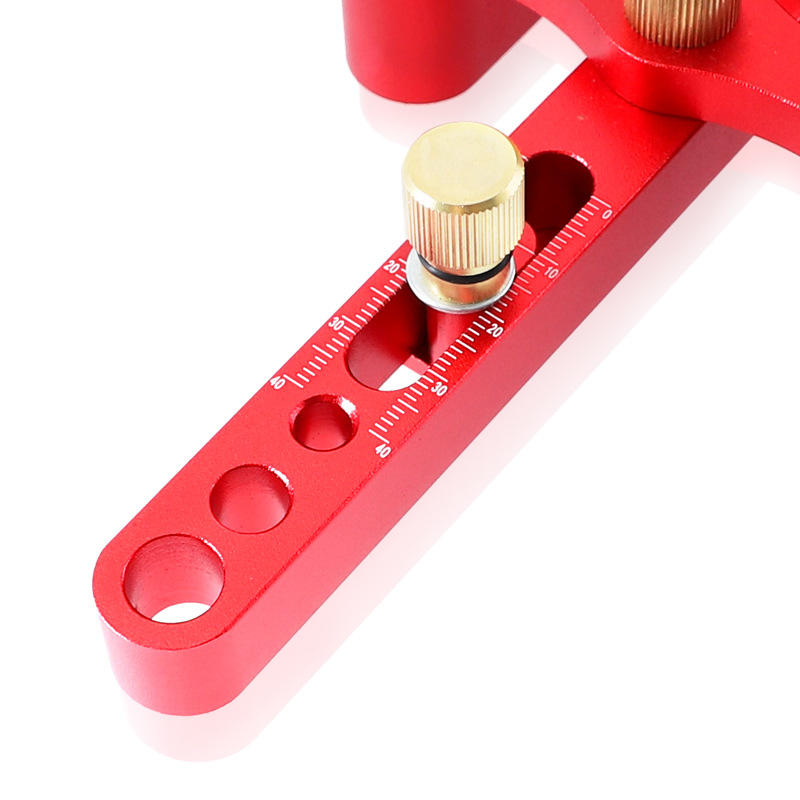

  • Adjustable Stop–The joinery punch is specially prepared adjustable stop and drill accurately, which can drill equally space hole along the wood.
  • Convenient and Practical–With the practical joinery punch locator, you can more conveniently work for woodworking. It is a great set tool for both furniture factory and woodworking enthusiasts.
  • Material: aluminum alloy 6061
  • Surface treatment: anodic oxidation treatment
  • The material of drill bushing: Steel HRC50°

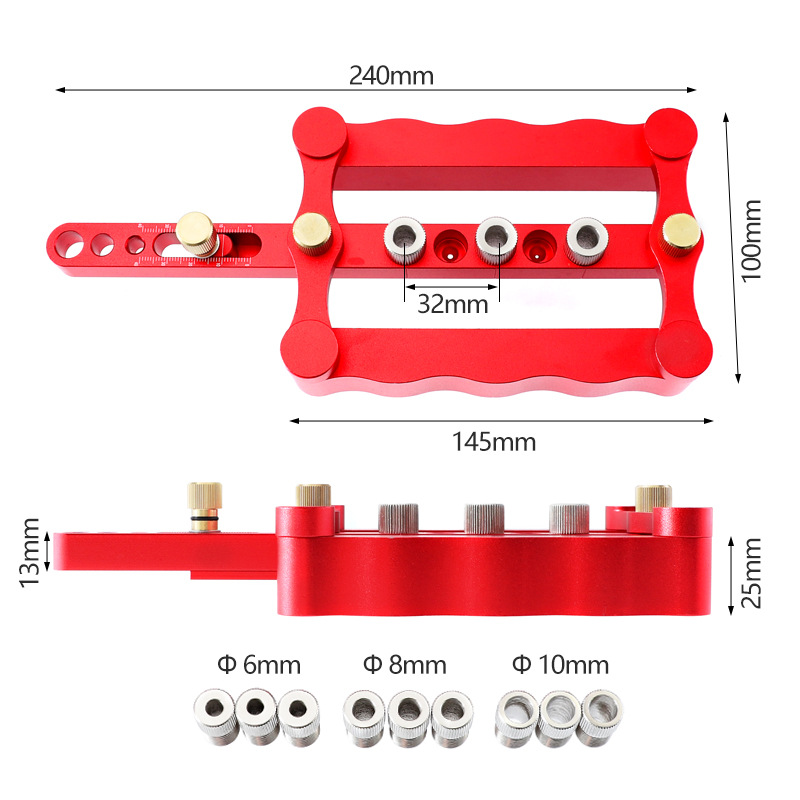

Specification :

Material: Aluminum Alloy 6061
Surface Treatment: Anodized
Positioning Dowel Size:6/8/10mm
Drill Bushing Size:6/8/10mm

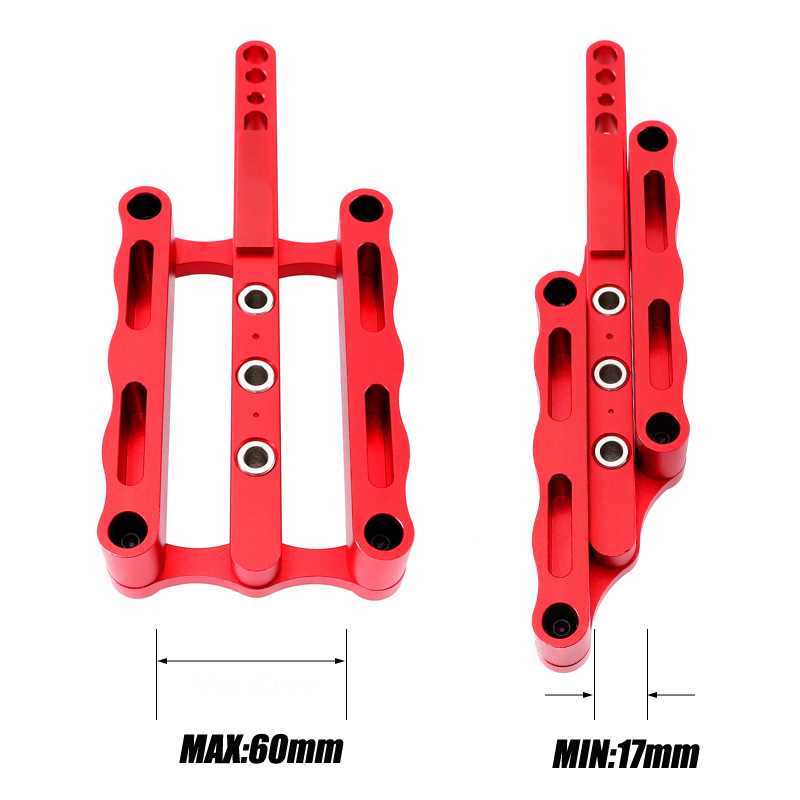

Applicable:17-60mm wood board

Dowelling Jig KitDowelling Jig KitDowelling Jig KitDowelling Jig KitDowelling Jig Kit

Customer Reviews
5 (20 reviews)
5 stars
4 stars
3 stars
2 stars
1 star
7 Jan 2021

The goods arrived, fast delivery. Really good quality. Can recommend the store. Thanks.

26 Dec 2020

Everything is fine! I recommend the store! The goods are made qualitatively, the delivery is fast.

25 Dec 2020

Goods match the description. Delivered undamaged. I will recommend to my friends.

23 Dec 2020

Fast shipping. Not bad quality.

3 Dec 2020

It arrive in Chile, well protected

3 Dec 2020

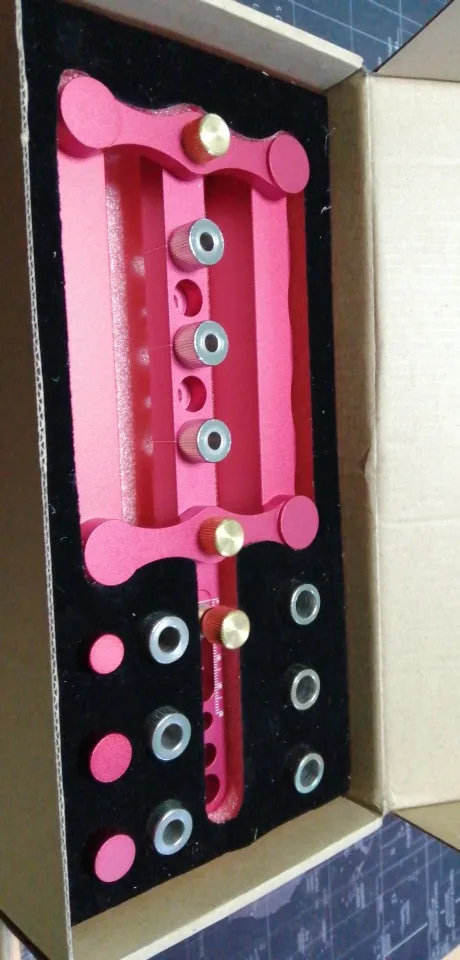

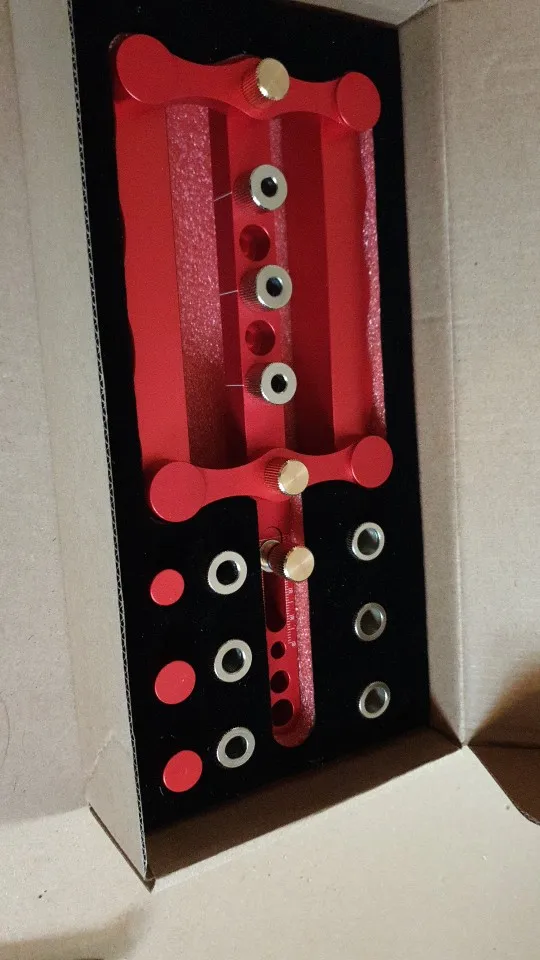

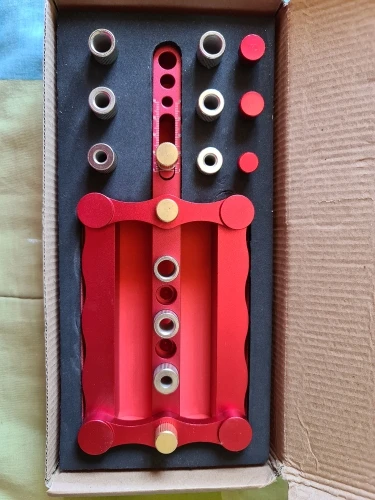

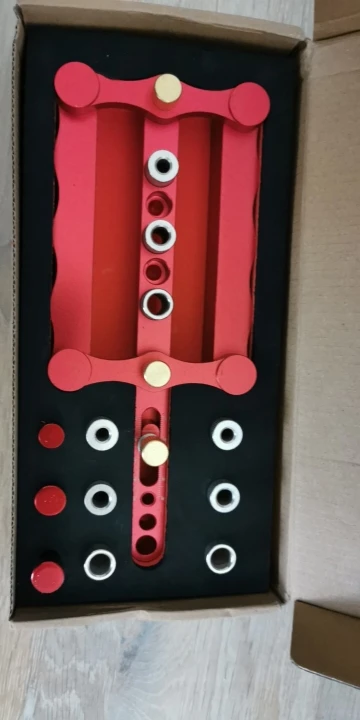

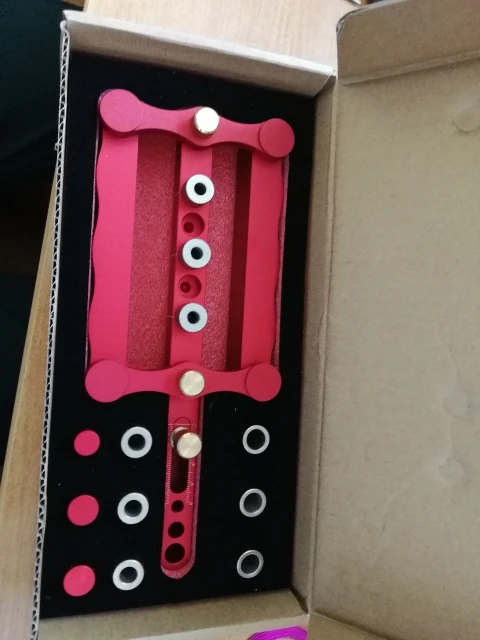

Haven't used it yet but the products looks pretty good. Packaging is nice

25 Nov 2020

Tough and terrific ~~~~

21 Nov 2020

Thank you to the store is huge! everything is super!!!

17 Nov 2020

The quality is excellent.

26 Oct 2020

Product complies with the description. Thank you very much.

23 Oct 2020

The distance scale from the edge is not applied correctly, with a 10mm offset... The emphasis from the edge of the luftitis in the groove, parallenity should be caught at the exhibition. Processing quality is good.

21 Oct 2020

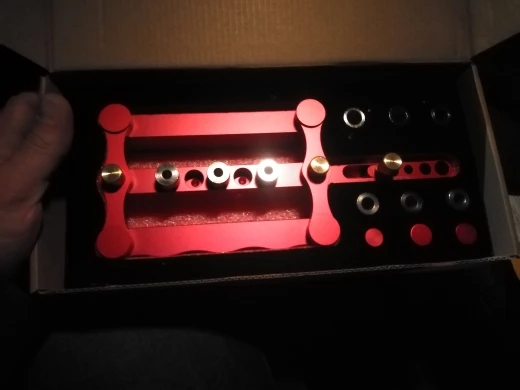

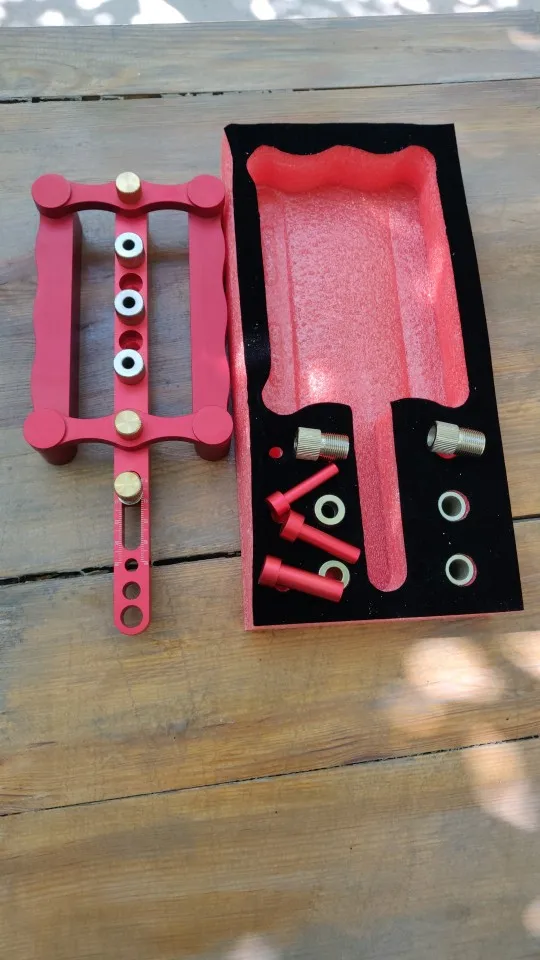

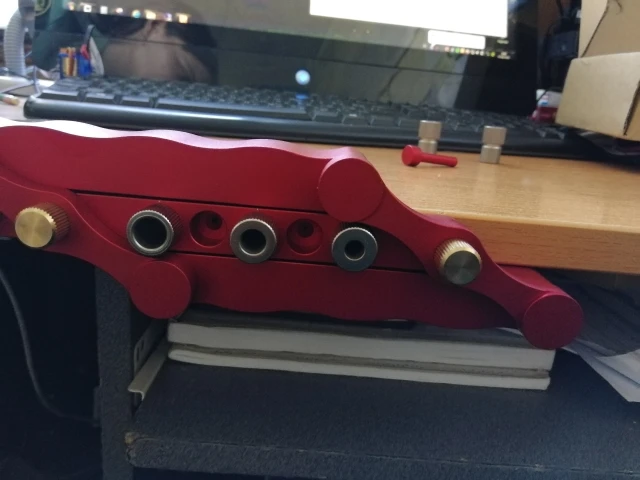

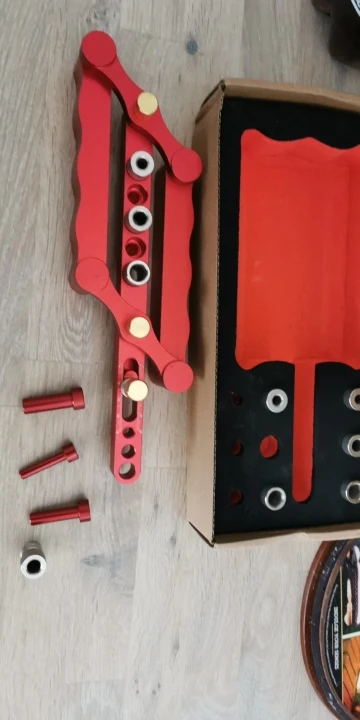

Build quality is good! All details to this tool are present. There are O-rings on the center bolts! It can not but please! On the sleeves under the package there is a thread! Adapter for charging in an example to the size of the tool!!!(not included)

18 Oct 2020

Good product. While not the quality of Woodpeckers, it does the same job for MUCH less! Highly recommended.

14 Oct 2020

All ok, shipping very fast and good packing I recommend this store

24 Sep 2020

Very beautiful device. Red, metallic. Otpad, bomb, gun. Until I admire, I did not use it for my purpose. Thanks to the store for the aesthetic orgasm ^_^

12 Sep 2020

Exactly as I want

11 Sep 2020

All is well. Corresponds to the description. Packed well. It came quickly

19 Aug 2020

fajny zestaw. Dostawa z Polski w 2 dni

9 Aug 2020

Быстрая доставка и хорошее качество. Благодарю и рекомендую. 5 баллов!

23 Jul 2020

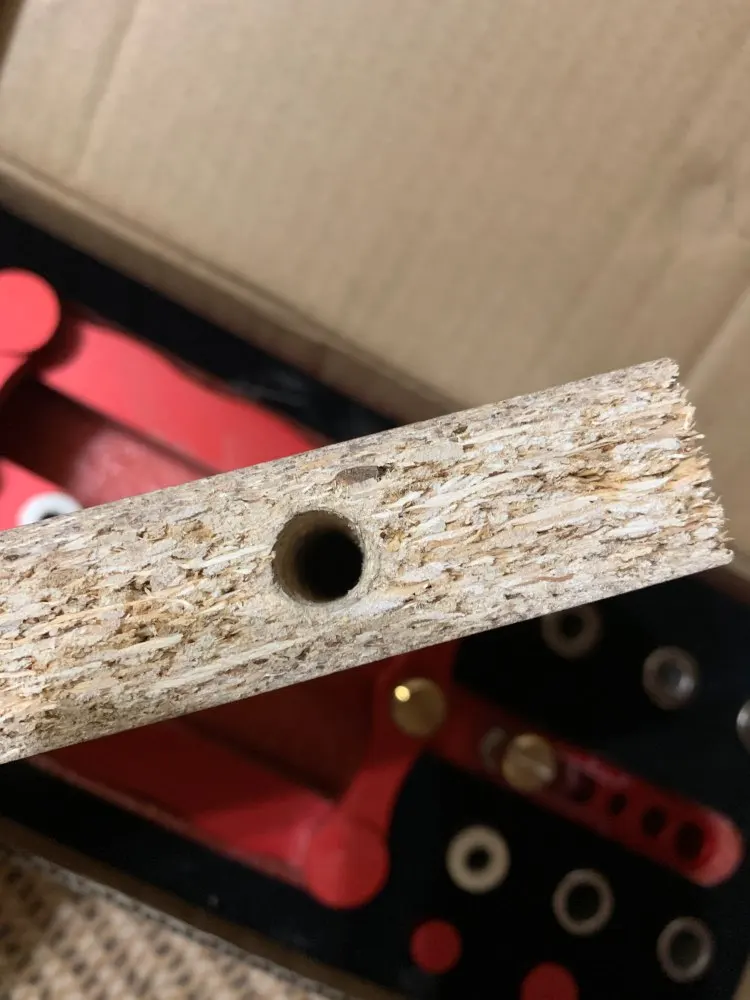

Отличная приспособа! чтобы работать с 16мм дсп требуется доработка наклейкой пары линеек.
