Automatic Water Level Control Valve
- Widely used in magnetic level switch and liquid level measurements.
- It has a good performance of corrosion resistance and anti-deformation.
- A perfect valve to replace the traditional float ballcock.
- No electricity, Simple installation, Durable, Saving water resources.
- Automatic control, low-level self-complementary water, automatic stop when water is full.
- It can be installed in a variety of water tanks, ice machines, humidifiers, incubators, livestock equipment and other places to use.
This valve is the replacement of the traditional float ballcock, which can be applied to various systems of high water tanks, pools, water towers of the industry and civil construction, etc.
Automatic control, low self-complementary water, water full automatic stop
Four intakes, large volume of water
Beautiful appearance, small size, practical, simple installation
Without electricity, easy to use, long life, low failure rate, saving water resources
Working pressure range:1-10KG (0.1-1MPa)
Applicable Medium: clean water
Applicable Medium temperature: ≤70°
Resistance to high temperature medium temperature: 70°~120°
When the pool or tank water levels fall, the valve body will sink down and then the forerunner of the control valve will be opened.
As the pipe water pressure affects, the seal face of control valve will be opened.
Finally the water comes out and vice versa.
This production belongs to the liquid level control valves.

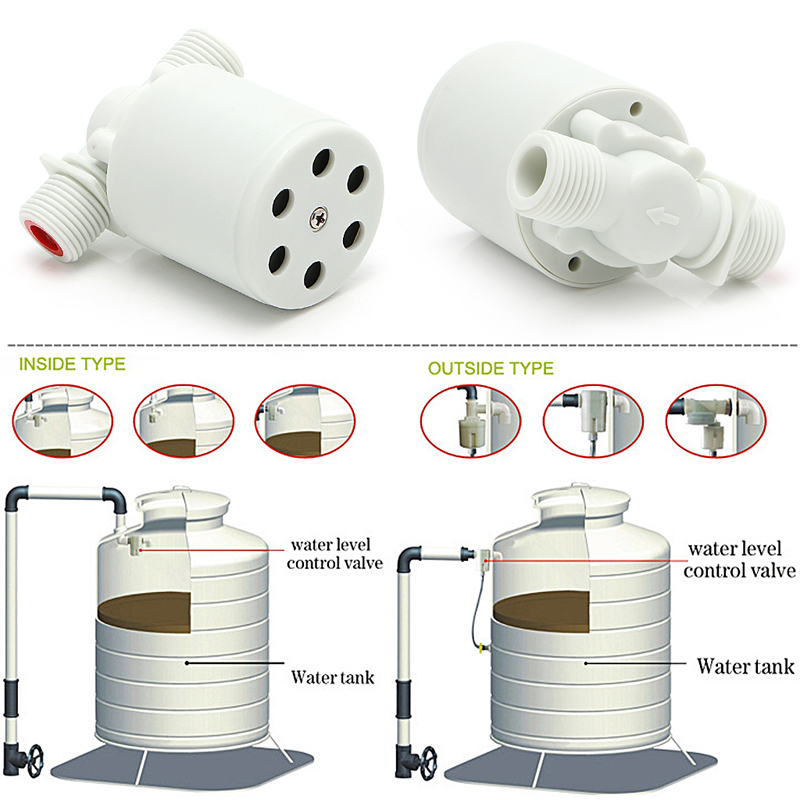

When installed, the float must be vertical. if you need to install from the top , a Elbow needed to connect the float valve and the inlet line.
Firstly, the feed line should be fixed in horizontal plane and then connect the automatic water level control valve on the water inlet according to the standard.
The main water inlet should be lined with the control valves’ Normal Diameter.
When using, the globe valve should be all open.
If two valves are installed in the same pool, the two valves should be held in the same horizontal plane.
Before installing, please clean the impurities in the pipes in case of blocking.
If the water quality is not good, then the valves need to be maintained properly.
If the users find the time of adding water becomes longer, he can just upload the water inlet and make it washed
Material: Nylon PA66+Food grade rubber
